21.5 inch Multi Camera Broadcast Production Monitor with 3G SDI Input and Output HDMI W2017
Sale price
$33.90
Regular price $132.14
Skip to product information
【Accurate Color, Clear Image】1920x1080 resolution, 250cd/㎡ brightness, 1000:1 contrast ratio, 178° wide viewing angle, accurate color reproduction, provides you natural and clear image.
【Accurately Focus and Expose】WIth waveform, peaking filter, histogram, vectorscope etc. Help you accurately focus and expose, shooting perfect video, effectively improve the efficiency of on-site shooting and post-production.

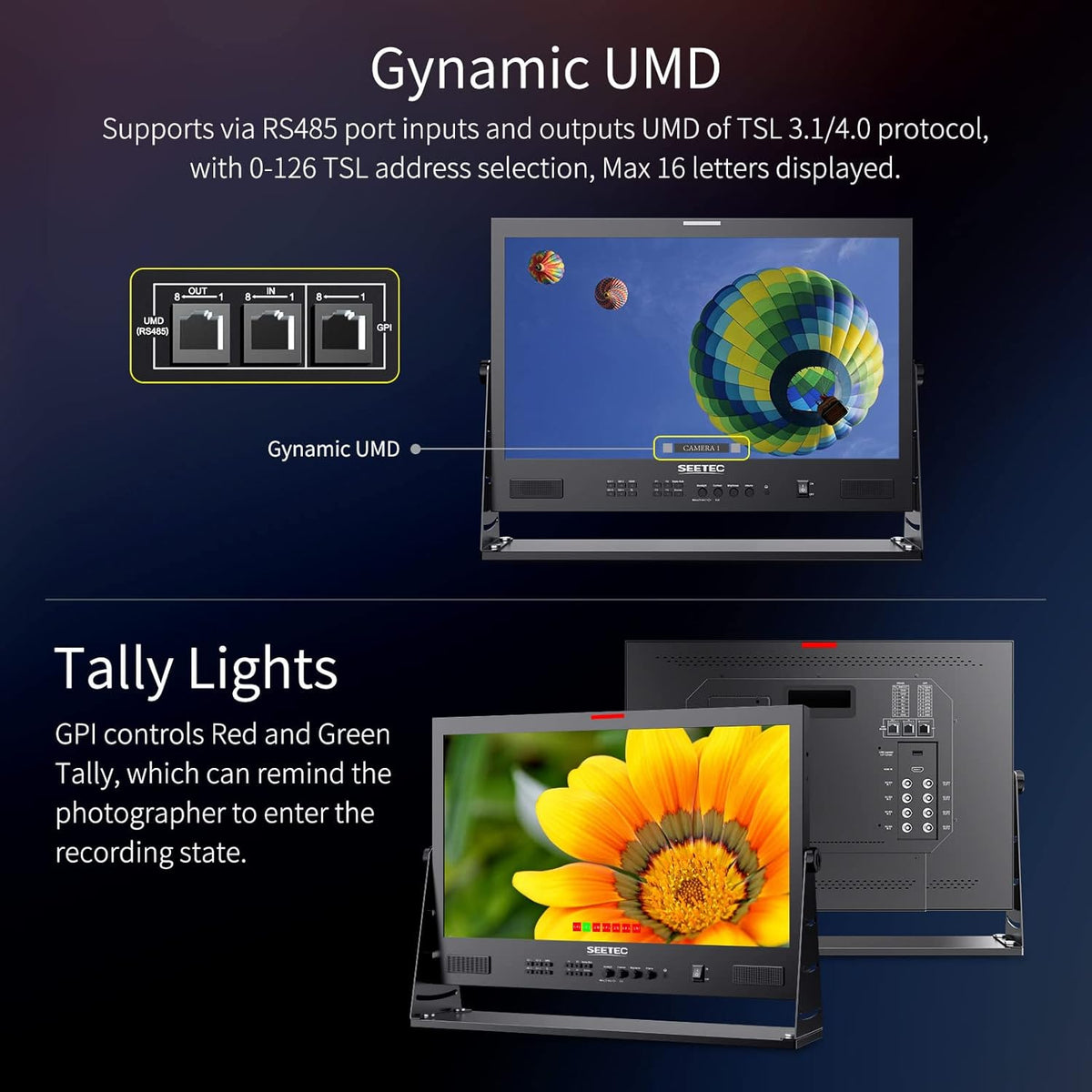

【Gynamic UMD and Tally Lights】ATEM215S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port. GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
【4X3G-SDI Inputs and Output】 It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.
【3D LUT, HDR Monitoring】Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36). 【Package Include】1×12V/4A Power Adapter, 1× SDI Cable, 1× Mini HDMI Cable, 1× V-mount Battery Plate (default to mount on device), 1× Sunshade, 1× U-shape Bracket, 1× User Manual
21.5 inch Multi Camera Broadcast Production Monitor with 3G SDI Input and Output HDMI W2017
Sale price
$33.90
Regular price $132.14
Shipping calculated at checkout.
【Accurate Color, Clear Image】1920x1080 resolution, 250cd/㎡ brightness, 1000:1 contrast ratio, 178° wide viewing angle, accurate color reproduction, provides you natural and clear image.
【Accurately Focus and Expose】WIth waveform, peaking filter, histogram, vectorscope etc. Help you accurately focus and expose, shooting perfect video, effectively improve the efficiency of on-site shooting and post-production.
【Gynamic UMD and Tally Lights】ATEM215S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port. GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
【4X3G-SDI Inputs and Output】 It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.
【3D LUT, HDR Monitoring】Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36). 【Package Include】1×12V/4A Power Adapter, 1× SDI Cable, 1× Mini HDMI Cable, 1× V-mount Battery Plate (default to mount on device), 1× Sunshade, 1× U-shape Bracket, 1× User Manual
| LAIZESKE W1000S Wireless Video Transmission System SDI Dual HDMI 1000FT 0.08S | SEETEC ATEM156-CO 15.6 Inch Live Streaming Carry-on Broadcast Director Monitor | SEETEC ATEM156S 15.6 inch Multi Camera Broadcast Production Monitor 4 SDI In Out | SEETEC ATEM173S 17.3 inch Multi Camera Broadcast Production Monitor 4 SDI In Out | SEETEC LUT215 21.5 Inch Built in De Log 3D LUT Broadcast Production Monitor | SEETEC P215-9HSD 21.5 Inch Broadcast Production LCD Monitor SDI HDMI 1920x1080 | |
|---|---|---|---|---|---|---|
| Screen Size | OLED Screen | 15.6' IPS | 15.6' IPS | 17.3' IPS | 21.5' IPS | 21.5' IPS |
| Resolution | 1920x1080 pixels | 1920x1080 pixels | 1920x1080 pixels | 1920x1080 pixels | 1920x1080 pixels | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness | 250cd/m² | 200cd/m² | 300cd/m² | 250cd/m² | 250cd/m² | |
| Contrast | 800:1 | 800:1 | 700:1 | 3000:1 | 3000:1 | |
| Inputs | 3G-SDI HDMI | HDMIx4 | 4x3G-SDI, HDMI, RS485, GPI, USB | 4x3G-SDI, HDMI, RS485, GPI, USB | 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI, DP (DisplayPort), USB | 3G-SDI, HDMI, YPbPr, Video, Audio(L/R) |
| Outputs | 3G-SDI, HDMI | HDMIx4, 3.5mm Stereo Headphone, | 4x3G-SDI, RS485, Stereo Headphone | 4x3G-SDI, RS485, Stereo Headphone，speaker | 3G-SDI, RS485, Stereo Headphone, Speaker(built-in) | 3G-SDI, HDMI, YPbPr, Video, Stereo Headphone, Speaker(built-in) |
| Features | 1000ft transmission range, 0.08S low latency, support 1080P@60Hz, Wireless full-duplex talkback, transmitter can be switched as a receiver, One TX to multiple RX, APP monitoring for Android/iOS, 13 frequency channels, AUTO channel scan | Quad Split Display, Peaking Focus Assist, False Color, Anamorphic, Display Rotate , Check Field, Image Freeze, Zoom, Pixel to Pixel, Center Marker, Safety Marker, Line Color | 3D-LUT, HDR, All Waves, RGB Histogram, Focus Assist, Zebra, Monochrome, False Color, Timecode, Nine Grid, Safety Marker, Center Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp | 3D-LUT, HDR, All Waves, RGB Histogram, Focus Assist, Zebra, Monochrome, False Color, Timecode, Nine Grid, Safety Marker, Center Marker, Parade, Vector, Histogram, Audio Meter, Scan Mode, Anamorphic Mode, Zoom, Freeze, Pixel to Pixel, Colortemp | Delog LUTs, 3D LUTs, GPI control, dynamic IMD, Histogram, Focus Assist, False Colors, Over Exposure, Timecode Display, Picture in Picture, Over Scan, Anamorphic Mode, Zoom, Pixel to Pixel, Center Marker, Safety Marker, Aspect Ratio, Image Freeze | Peaking Focus Assist, Check Field, Camera Mode, Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom |
| Unit Size | 67L*24W*118H (excluding antenna） | 372L×262H×28.4D (mm) (Without Aluminum Case) | 372L×262H×28.4D (mm) (W/O bracket) | 425L×296H×23D (mm) (W/O bracket) | 511.6Lx355.6Hx36D (mm) (W/O stand feet) | 511.58Lx355.5Hx37.87D(mm) |
| Unit Weight | 128g (One Unit) | 1.57kg (Without Aluminum Case) | 1.81kg | 2.84kg | 4.4kg | 4.25kg |
